Case Core Data：Real on-site production test | Total cutting length 10764.596 meters | No regrinding during operation | 70% less tool change downtime
Overview
High-volume CNC nesting for 19mm laminated chipboard is one of the most common yet challenging processes for high-end office and hotel furniture manufacturers. The laminated surface is prone to chipping and tear-out, while continuous high-speed operation easily causes rapid tool wear, frequent tool replacement and unplanned machine downtime — all of which raise production costs and delay order delivery.
This real production case records the actual application effect of diamond super nesting router bits on a European furniture factory’s SCM Group CNC nesting line. With standardized production parameters, the tool achieved a stable cutting length of 10764.596 meters without regrinding, completely solving the customer’s long-term pain points of short tool life and unstable board edge quality.
1. Real Client & Production Background
The client is a professional high-end furniture manufacturer in Slovenia, focusing on customized interior furniture for commercial scenarios such as office buildings and star hotels. Their production line features high continuous operation intensity and strict requirements for panel finish consistency, which puts forward extremely high standards for CNC nesting cutting tools.
On-site Production Information
-
Industry Scenario：High-end commercial furniture mass production
-
Core Process：CNC full-automatic nesting cutting
-
Processing Material：19mm laminated chipboard (easy to tear and wear tools)
-
Production Equipment：SCM Group professional CNC nesting machine
-
Production Demand：Stable edge cutting quality, long tool service life, reduced frequent tool replacement and production halt
2. On-site Production Pain Points (Before Tool Upgrade)
In the mass production of 19mm laminated chipboard, the customer has been plagued by industry common problems with conventional nesting bits, which seriously restrict production efficiency and product yield. All pain points are summarized from long-term on-site operation data:
-
Ultra-short tool service life：The service life of ordinary nesting bits is only 2000–3000 meters. Mass production requires frequent shutdown replacement, consuming a lot of working hours.
-
High unplanned downtime：Frequent tool changes and repeated machine parameter calibration lead to discontinuous production and low overall line efficiency.
-
Unqualified edge finish：After slight tool wear, the laminated surface is prone to tear-out, chipping and burrs. Defective boards require secondary manual polishing, increasing post-processing labor costs.
-
High comprehensive production cost：Short tool replacement cycle leads to continuous consumption of tooling costs, and defective products and low productivity further compress order profit margins.
The core demand of the customer is clear: find a high-stability nesting tool that can adapt to long-term high-speed continuous cutting of 19mm laminated chipboard, balance tool life and cutting finish, and reduce overall production and maintenance costs.
3. On-site Matching Tool & Standard Cutting Parameters
Aiming at the customer’s high-volume nesting scenario for 19mm laminated chipboard, we matched the DiZiK HS053 Hardened Steel Super Nesting Diamond Router Bit according to on-site equipment and processing characteristics, and verified the most stable production parameters through repeated machine testing to adapt to long-term continuous operation.
3.1 Tool Basic Specification
-
Model：HS053
-
Size：D12 × S12 × H22 × 70OL
-
Structure：Z3+3 double-sided balance cutting geometry
-
Core Configuration：Hardened steel tool body + precision diamond cutting edge
-
Design Advantages：High-rigidity tool body resists deformation; optimized chip flutes ensure smooth chip removal during high-speed cutting; overall balance structure reduces spindle vibration and protects CNC equipment

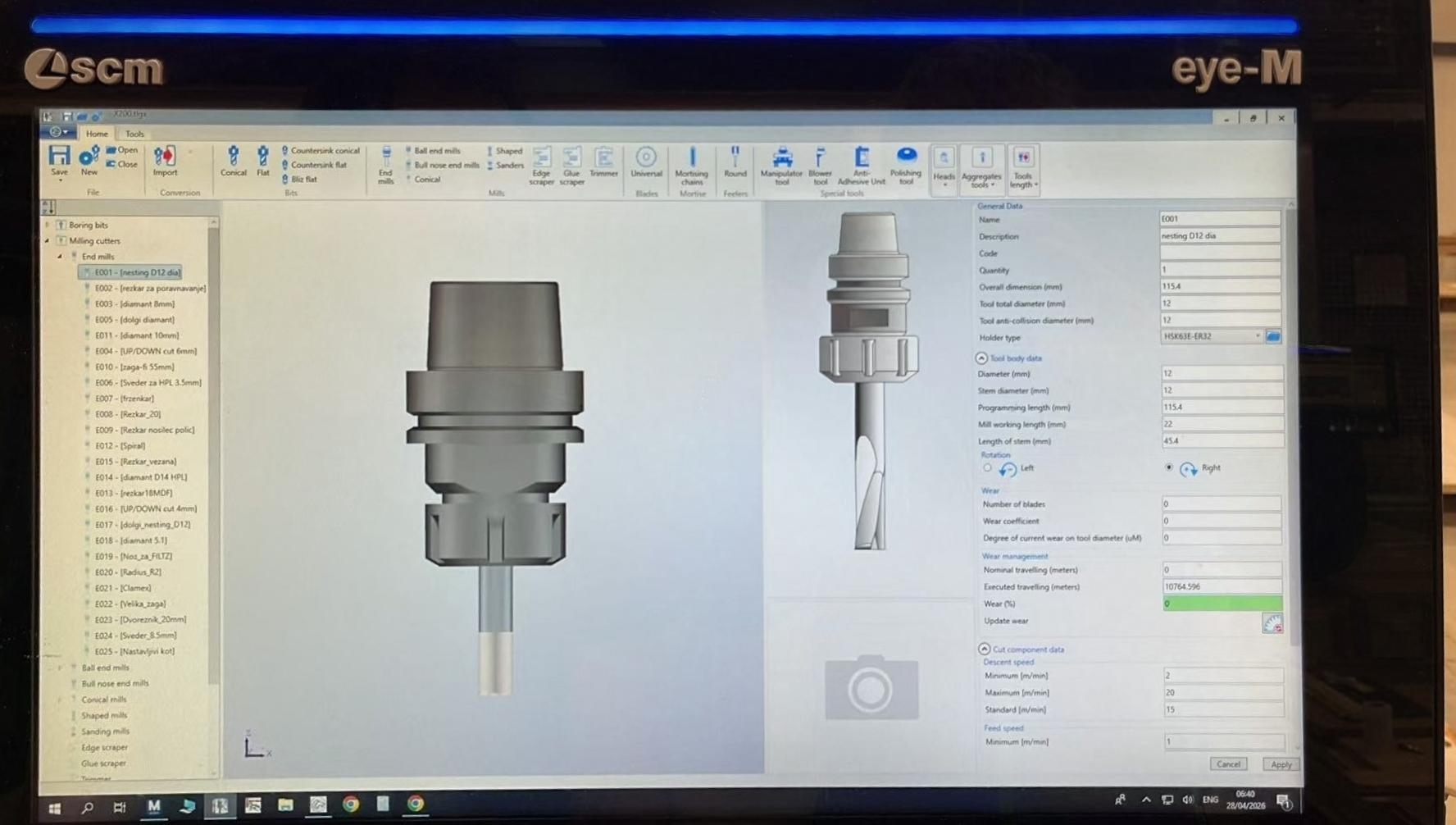

3.2 On-site Verified Stable Cutting Parameters
All parameters are from the customer’s actual continuous production data, suitable for SCM CNC nesting machine processing 19mm laminated chipboard:
|
Cutting Parameter
|
Actual Production Specification
|
|
Spindle Speed
|
18,000 RPM
|
|
Feed Rate
|
11 m/min
|
|
Processing Material
|
19mm Laminated Chipboard
|
|
Operation Mode
|
High-speed continuous super nesting
|
4. Real On-site Production Data & Improvement Results
The tool was officially put into the customer’s formal production line on April 2, 2026. After continuous uninterrupted nesting processing, theactual cumulative effective cutting length reaches 10764.596 meters. Throughout the whole process, the tool maintains stable performance without regrinding or replacement, and all production indicators are significantly improved compared with traditional tools.
4.1 Core Verified Production Results
-
Ultra-long service life：Actual cutting length 10764.596m, 4–5 times the service life of conventional nesting bits (2000–3000m), eliminating frequent tool replacement troubles.
-
Zero regrinding full-process operation：No tool repair or regrinding required in the whole production cycle, saving tool maintenance time and cost.
-
stable high-quality edge finish：Long-term continuous cutting achieves zero tear-out, zero chipping on laminated chipboard surface, no secondary polishing needed, meeting high-end furniture finish standards.
-
70% reduction in production downtime：Greatly reduced tool replacement and machine adjustment times, realizing continuous and efficient operation of the production line.
-
Significant cost reduction：Single tool covers ultra-long processing distance, effectively reducing unit board tool consumption cost and labor maintenance cost, and improving overall production profit.
5. Practical Production Value for Furniture Manufacturers
This 10764.596-meter super nesting case fully verifies the practical value of high-performance diamond nesting bits in large-scale laminated chipboard processing, solving the core pain points that trouble most furniture CNC processing factories:
1. Stabilize product quality and pass high-end order inspection
For hotel and office high-end customized furniture, board edge finish is the key inspection standard. Stable zero-tear-out cutting avoids defective products caused by tool wear, ensures uniform finished product quality, and improves customer order pass rate and reputation.
2. Improve line efficiency and reduce idle loss
Fewer tool changes and machine calibrations reduce production interruption frequency, maximize CNC machine running time, effectively increase daily processing output, and solve the efficiency bottleneck of high-volume nesting production.
3. Control comprehensive production costs
Long tool life reduces tool procurement frequency, and stable processing performance cuts post-processing labor and defective product loss. For long-term mass production, the cost advantage is extremely obvious.
4. Protect CNC equipment and reduce maintenance
The balanced vibration reduction design avoids spindle jitter caused by tool unbalance during high-speed operation, reduces equipment loss, and extends the service life of CNC nesting machines.
6. Matching Scenarios & Custom Solution Support
This HS053 hardened steel diamond nesting bit is specially optimized for 19mm laminated chipboard high-speed super nesting, and is also applicable to MDF, multi-layer boards and other common furniture panel materials, widely used in high-volume CNC nesting production of office, hotel and home furniture.
If you are also facing short tool life, easy board chipping, frequent downtime and high tool cost in laminated chipboard CNC nesting processing, we can provide parameter debugging and customized tool solutions according to your equipment model, material type and production rhythm to help you optimize production efficiency and reduce processing costs.
