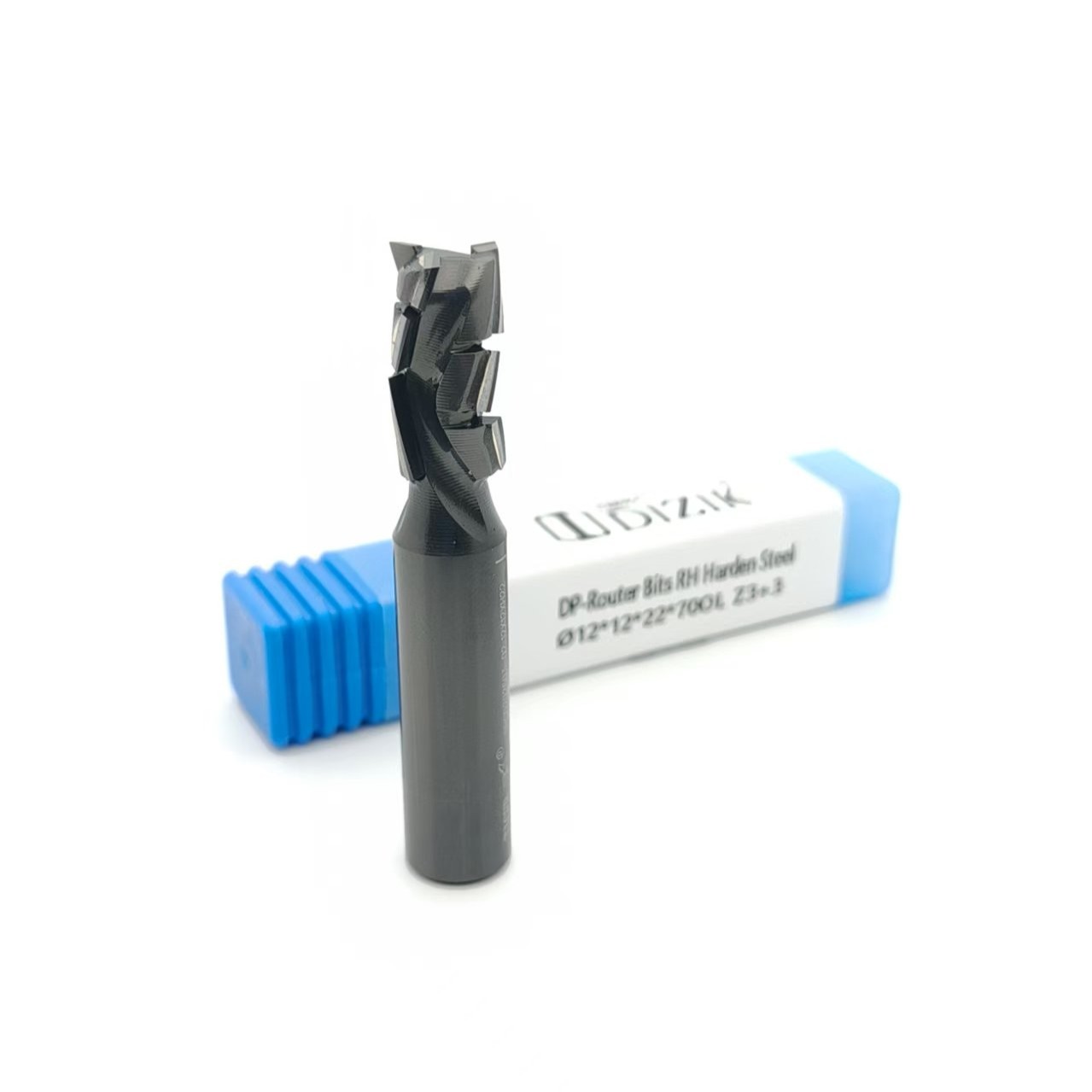

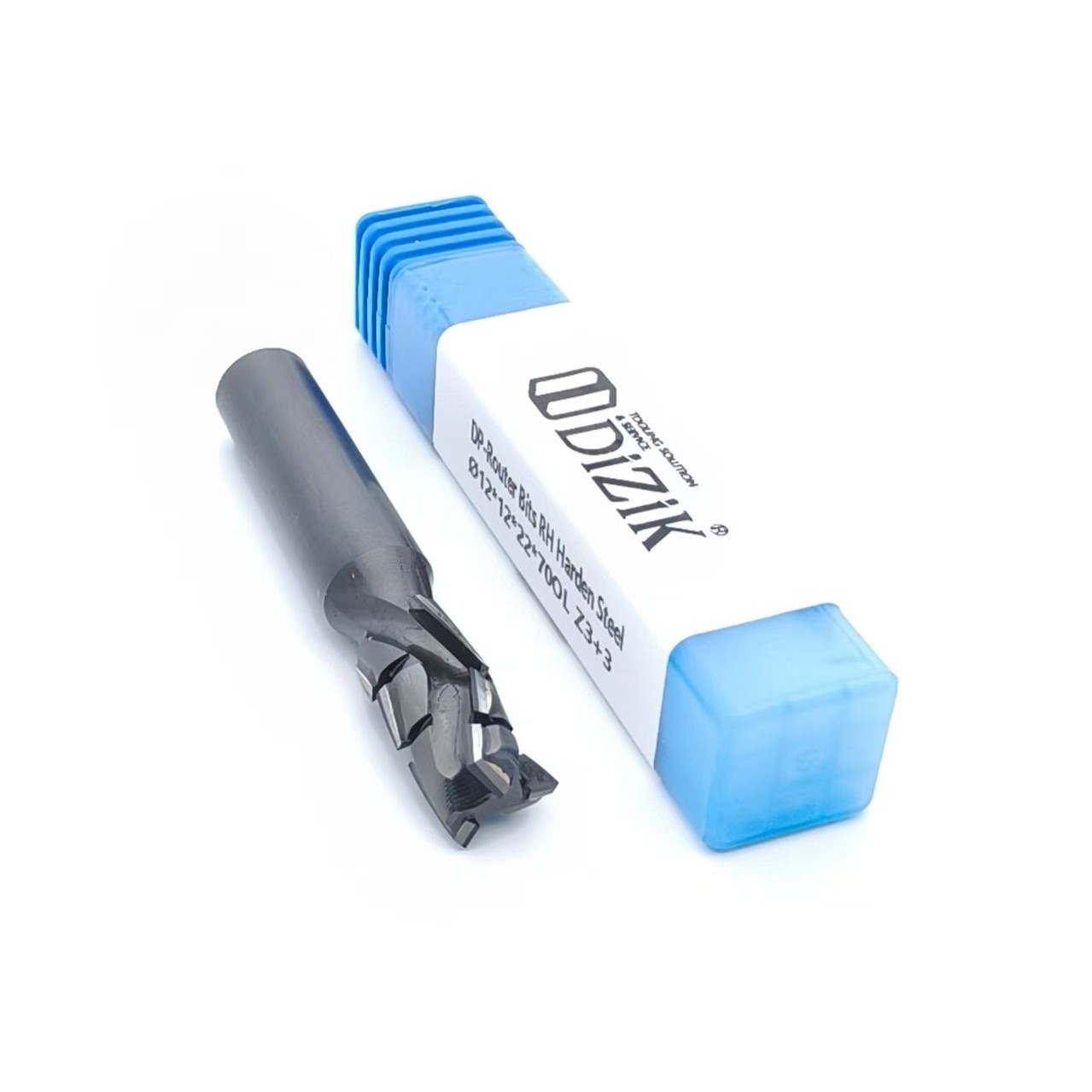

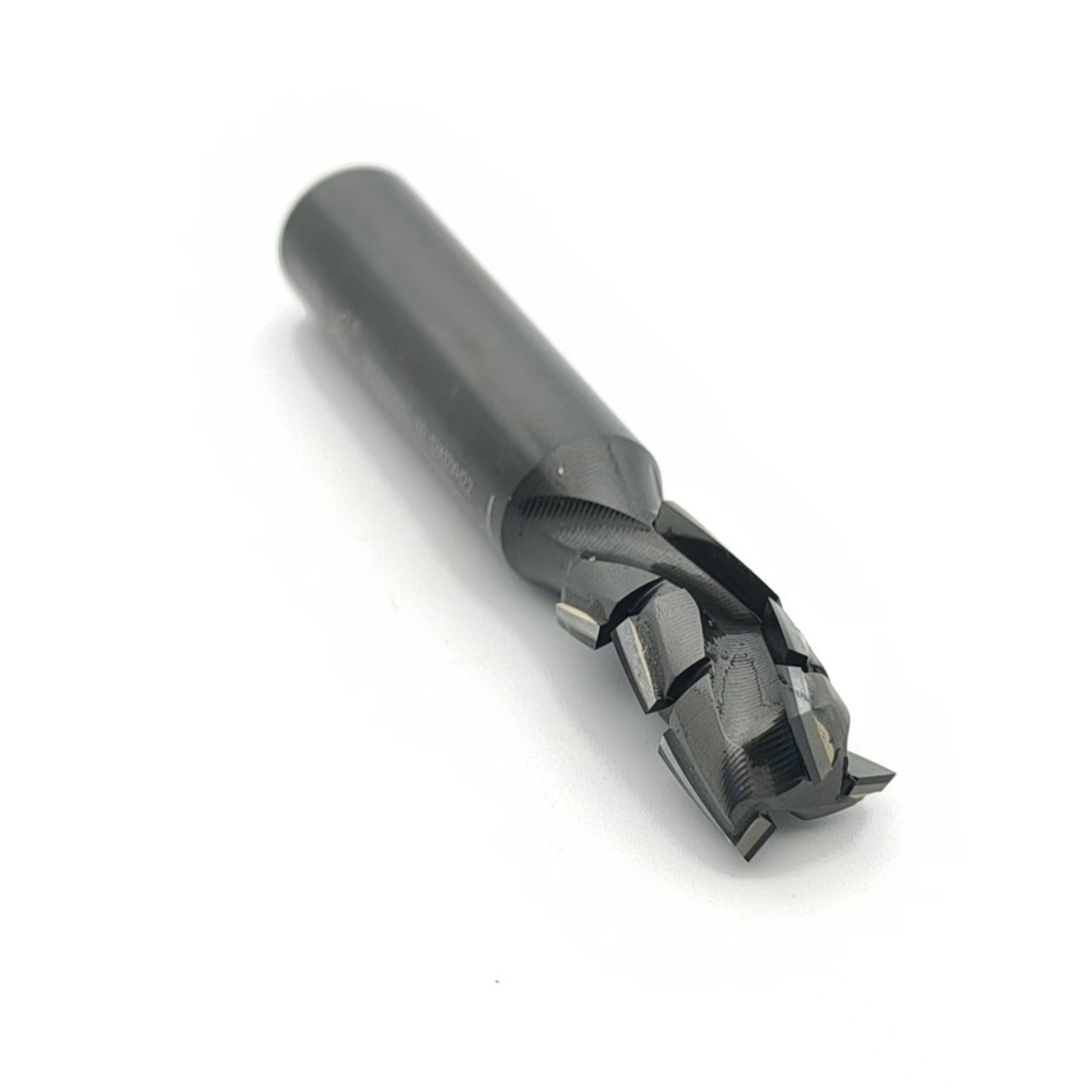

HS053 PCD Super Nesting Bits for High-Speed CNC Cutting
The DiZiK HS053 PCD Super Nesting Bit is developed for high-efficiency CNC nesting in particle board and MDF. With a precision-ground structure and durable PCD cutting edges, it ensures clean cuts, minimal chipping, and long service life under continuous production.
This model is widely used in furniture manufacturing where consistency and tool longevity directly impact output.
Real Production Challenges It Solves
In factory environments, standard tools often lead to:
- Edge chipping on laminated panels
- Tool wear due to high glue content materials
- Frequent tool replacement
- Instability at high feed speeds
The HS053 is engineered specifically to reduce these issues and maintain stable cutting quality over long production cycles.
Technical Specifications
- Model: HS053
- Size: 12 × 12 × H22
- Flute: Z3 + 3 (Compression)
- Cutting Angle: 20°
- Material: PCD (Polycrystalline Diamond)
- Tool Body: Rare metal alloy
- Precision: ±0.01mm
Performance Data (Factory Proven)
- Panel thickness: 16 / 18 / 19 / 20 mm
- Feed speed: 11–12 m/min
- Spindle speed: 18,000 RPM
- Total cutting distance: 9,000 – 11,000 meters
Designed for stable, repeatable performance in high-volume production.
Key Advantages of HS053

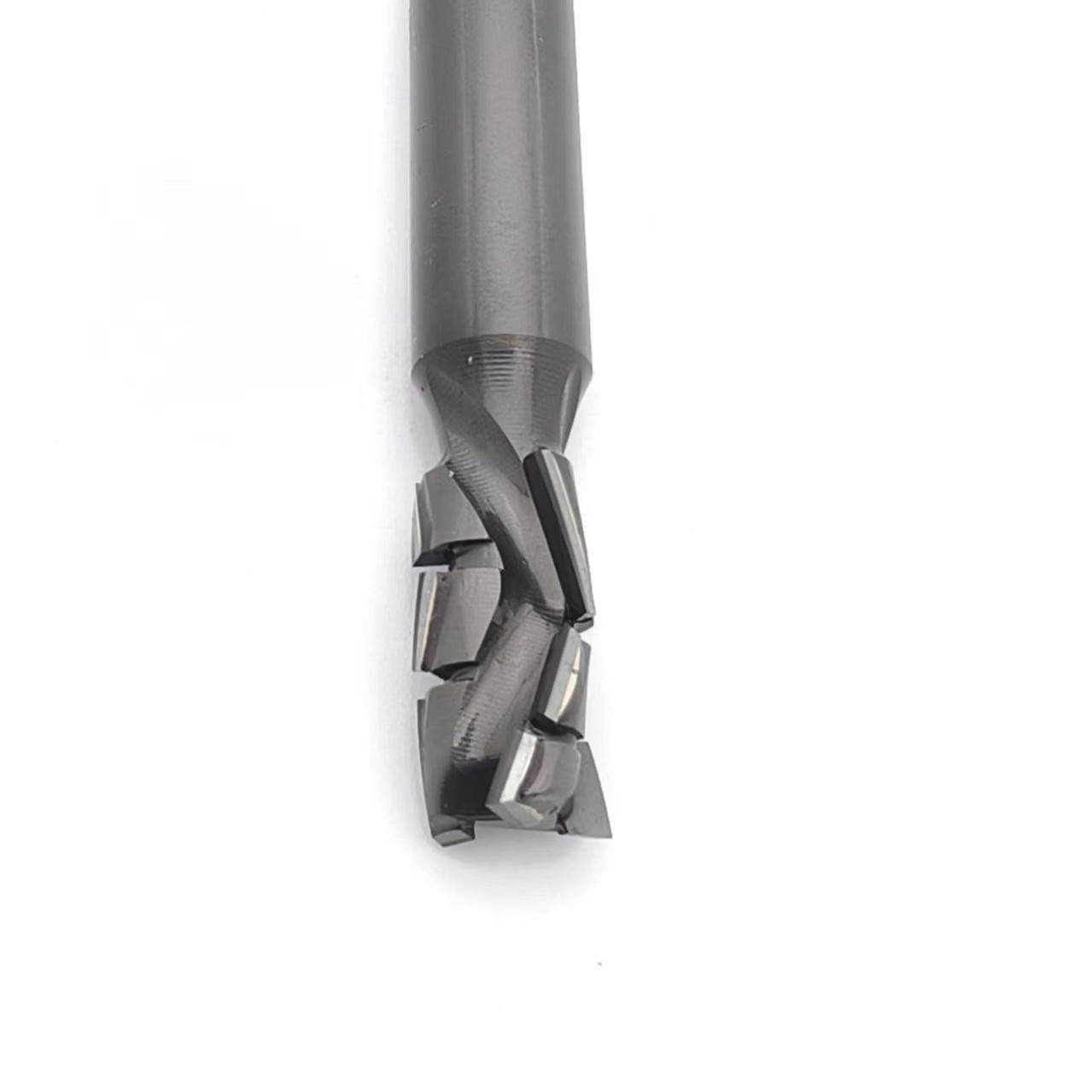

Compression Cutting (Z3+3)
Up/down cutting edges minimize chipping on both surfaces, especially important for laminated boards.
High Rigidity Tool Body
The rare metal base improves stability and reduces vibration at high spindle speeds.
Ultra Precision Manufacturing
Produced using advanced EDM and CNC grinding with strict tolerance control (0.01mm).
Extended Tool Life
PCD cutting edges significantly outperform carbide tools in abrasive panel materials.
Typical Applications
- CNC nesting for cabinet production
- Particle board cutting
- MDF panel processing
- Laminated board trimming
- High-efficiency furniture production lines
Machine Compatibility
- CNC nesting routers
- Automated panel processing lines
- High-speed CNC woodworking machines
About DiZiK
DiZiK specializes in industrial cutting tools for wood-based panels. Our HS053 model is developed based on real production feedback, focusing on durability, cutting stability, and reduced downtime in factory environments.
Quality Control
Each HS053 tool is:
- Manufactured with industrial-grade PCD
- Precision ground using advanced CNC systems
- Strictly tolerance-controlled
- Tested in real cutting applications
FAQ
1. What is HS053 mainly used for?
HS053 is designed for CNC nesting of particle board, MDF, and laminated panels in furniture production.
2. What makes HS053 different from standard carbide bits?
It uses PCD cutting edges, offering significantly longer lifespan and better performance in abrasive materials.
3. What is the benefit of Z3+3 design?
It creates a compression cutting effect, reducing chipping on both top and bottom surfaces.
4. How long does HS053 last?
Under standard conditions, it can reach 9,000–11,000 meters of cutting distance.
5. Can it run at high speed?
Yes, it is optimized for high-speed CNC machines at around 18,000 RPM-24,000RPM.
