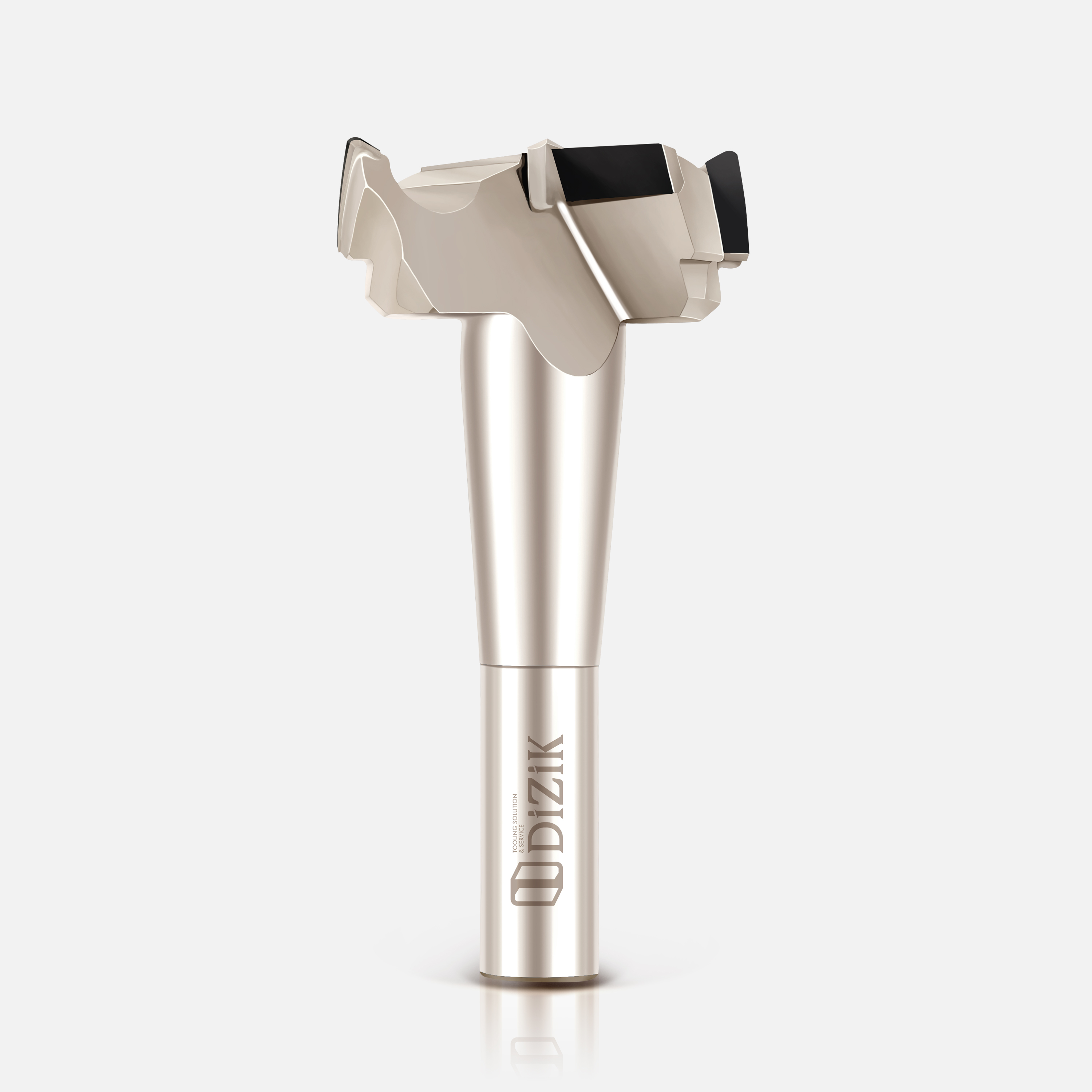

Diamond Hinge Boring Bits for CNC | High Speed 6‑Sided Drilling Tool for HPL & Panel Processing

No.FTZ001
High-performance diamond hinge boring bits for high-speed CNC machining centers and 6‑sided drilling machines. Not suitable for traditional 3‑in‑1 drilling units. Features long tool life, clean hole quality, and excellent performance on HPL and wood panels. Standard sizes: 12/15/30/35/37mm, total length 70mm, right-hand rotation; custom sizes available.
$ *****
Get The Latest Quote
Add to Quote List View Quote List
  • Diamond hinge boring bits
  • Diamond hinge boring bits

Description

What are Diamond Hinge Boring Bits?
Diamond hinge boring bits are high-precision cutting tools designed for high-speed blind hole drilling of concealed hinges on modern CNC machining centers and 6‑sided drilling machines. Built with industrial-grade diamond cutting edges and reinforced anti-slip shanks, they deliver stable high-speed performance, clean hole walls, minimal chipping, and greatly extended service life compared to conventional carbide-tipped hinge drills. They are widely used in mass panel processing, furniture manufacturing, cabinet production, and HPL laminated board applications.

Engineered for High‑Speed Precision. Built for Mass Production.
Our Diamond Hinge Boring Bits are specially designed for modern high-speed CNC machining centers and 6‑sided drilling machines. Unlike standard hinge drills commonly used on traditional 3‑in‑1 drilling units, our diamond hinge boring tools are optimized for high RPM spindle operation, ensuring stable cutting performance, smooth hole walls, and extended service life.

These tools are ideal for large‑scale industrial processing of wood‑based panels, MDF, particle board, plywood, laminated boards, and high-pressure laminate (HPL).

Why Traditional Hinge Drills Are Not Suitable for High-Speed CNC
Many factories still use conventional hinge drill bits originally designed for low-speed 3‑in‑1 drilling units. However, in high-speed CNC or 6‑sided drilling machines, these traditional tools present serious limitations:

❌ Low‑Speed Torque Dependence
Traditional hinge drills are developed to rely on high spindle torque at low RPM. In high‑speed CNC environments, spindle torque is relatively lower, which can lead to:
Insufficient cutting force
Unstable drilling
Tool slipping in collet
Inconsistent hole depth

❌ Edge Chipping and Blowout
When cutting becomes unstable, especially on laminated boards and HPL surfaces, it often causes:
Edge breakout
Surface delamination
Rough hole walls
Poor hinge installation accuracy

❌ Short Tool Life
Carbide‑tipped traditional hinge drills wear quickly in mass production, especially when cutting high-density materials.

Our Diamond Hinge Boring Solution
Our diamond hinge boring bits are developed specifically for high-speed CNC spindle systems and modern 6‑sided drilling centers, and are not intended for use on traditional 3‑in‑1 drilling units.

✔ Designed for High RPM Operation
Optimized cutting geometry ensures:
Stable drilling at high rotational speed
Reduced vibration
Cleaner cutting surface
Accurate hole dimension consistency

✔ Diamond Cutting Edge for Extended Tool Life
Using industrial-grade diamond cutting technology, our hinge boring bits provide:
5–10x longer lifespan compared to carbide
Superior wear resistance
Stable performance in continuous mass production
Reduced tool change downtime
This significantly lowers overall production cost per hole.

✔ Perfect for Large Batch Panel Processing
Ideal for:
  • Cabinet doors
  • Wardrobe panels
  • Furniture production lines
  • Custom panel factories
  • HPL laminated boards
  • MDF and particle board mass production

Especially suitable for automated production environments where tool stability and repeatability are critical.

Specifications:
Cutting Diameter: 12mm, 15mm, 30mm, 35mm, 37mm
Overall Length: 70mm
Rotation Direction: Right-hand (R)
Custom sizes available upon request
Shank Type: Reinforced anti‑slip design
Application: Blind hole drilling for concealed hinges

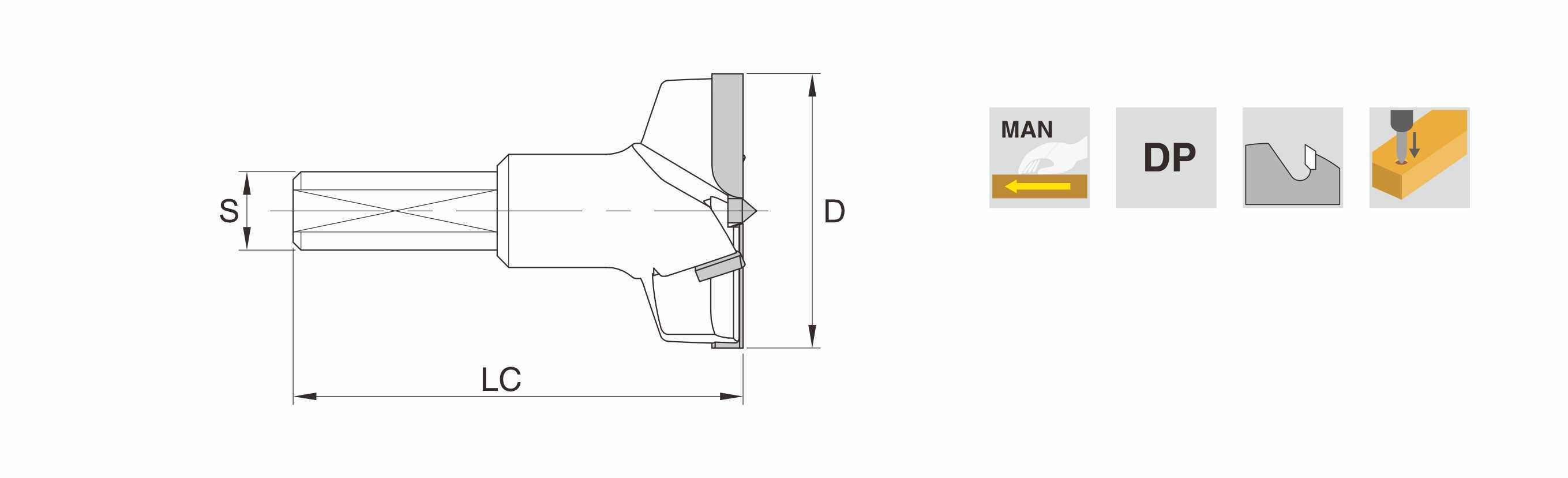

Part-No.  ΦD  LC LT S Z Rotation Notes
B.FTDP.1570R 15 50 70 10x35 2+2 RH
B.FTDP.3070R 30 50 70 10x35 2+2 RH
B.FTDP.3570R 35 50 70 10x35 2+2 RH

Suitable Machines
  • CNC machining centers
  • 6‑sided drilling machines
  • High‑speed panel drilling lines
  • Not suitable for traditional 3‑in‑1 drilling units.

Processing Materials
  • MDF
  • Particle board
  • Plywood
  • HPL
  • Laminated boards
  • Solid wood panels

Superior Hole Quality on HPL and Laminated Panels
HPL and laminated boards are highly prone to edge chipping during hinge boring.

Our diamond hinge boring bits provide:
  • Sharp peripheral cutting edge
  • Clean surface finish
  • Reduced top-layer tear-out
  • Accurate hinge cup fitting

This ensures:
  • Better hinge installation precision
  • Reduced rework rate
  • Improved final product quality

Optimized for 6‑Sided Drilling Machines
Modern 6‑sided drilling machines operate at higher speeds and require precision‑balanced tooling.
Our diamond hinge boring tools offer:
  • Stable high-speed rotation
  • Reduced spindle load
  • Consistent depth control
  • Smooth evacuation of chips

This ensures compatibility with automated production lines.

Cost Efficiency in Mass Production
While diamond hinge boring bits have a higher initial investment than traditional carbide hinge drills, the long-term benefits include:
  • Lower cost per hole
  • Fewer tool replacements
  • Less machine downtime
  • Higher production consistency
  • Reduced quality complaints

For large‑scale manufacturers, this results in measurable production efficiency gains.
Comparison: Diamond vs Traditional Carbide Hinge Bits
Feature Traditional Carbide Hinge Drill Diamond Hinge Boring Bit
Tool Life Short Very Long
High‑Speed Stability Limited Excellent
HPL Performance Chipping Risk Clean Cutting
Mass Production Suitability Medium High
Cost per Hole Higher (long-term) Lower
Suitable Equipment 3‑in‑1 drilling units, low-speed machines High-speed CNC, 6‑sided drills

Application Industries
  • Custom furniture manufacturing
  • Modular cabinet production
  • Kitchen cabinet factories
  • Wardrobe systems
  • Panel processing factories
  • OEM furniture manufacturers

Frequently Asked Questions
Q1: Can this be used on traditional 3‑in‑1 drilling units?
No. This tool is optimized for high‑speed CNC and 6‑sided drilling machines, and not suitable for traditional 3‑in‑1 drilling units. For low-speed 3‑in‑1 machines, standard carbide hinge drills are still recommended.

Q2: Is it suitable for HPL?
Yes. It is specifically designed to reduce chipping on HPL and laminated boards.

Q3: How long does the tool last?
Depending on material and speed, tool life can be 50x times longer than carbide hinge boring bits.

Q4: Can sizes be customized?
Yes, we offer OEM customization for diameter, shank type, and cutting geometry. Standard diameters include 12mm, 15mm, 30mm, 35mm, 37mm with 70mm overall length and right-hand rotation.
