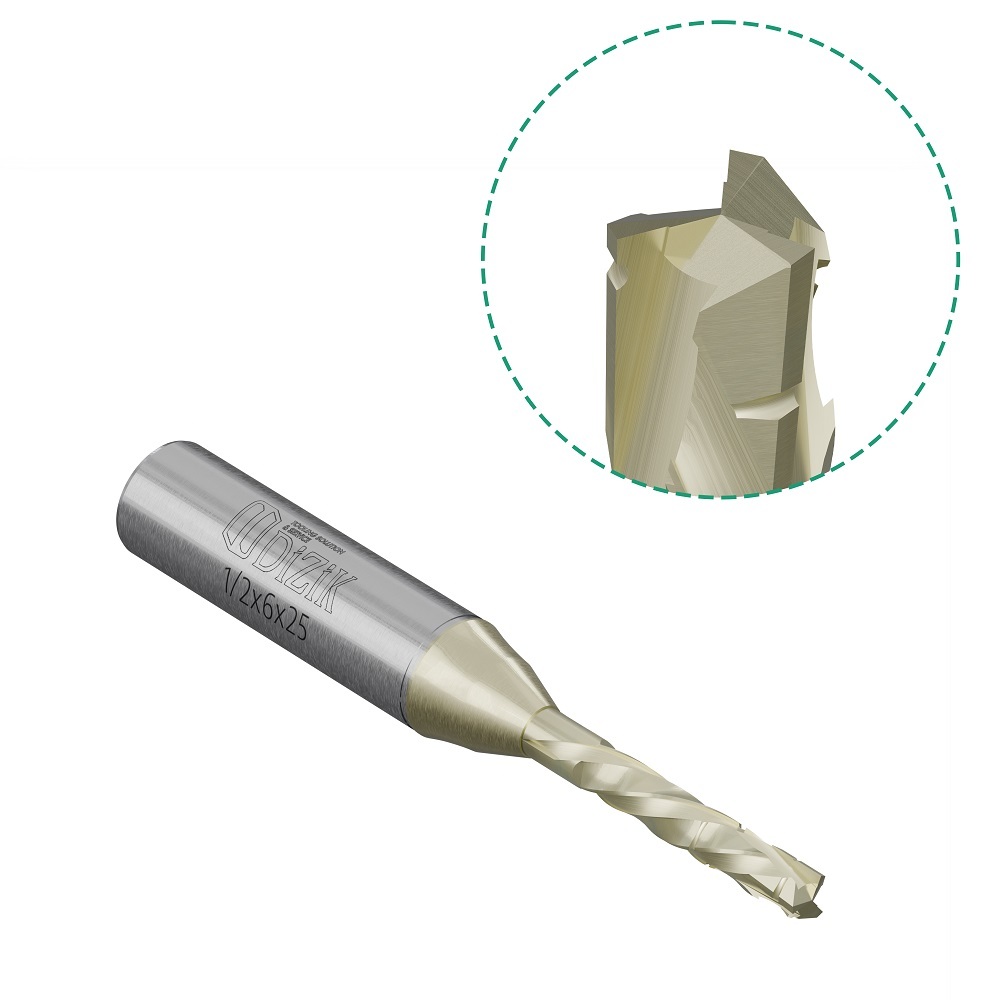

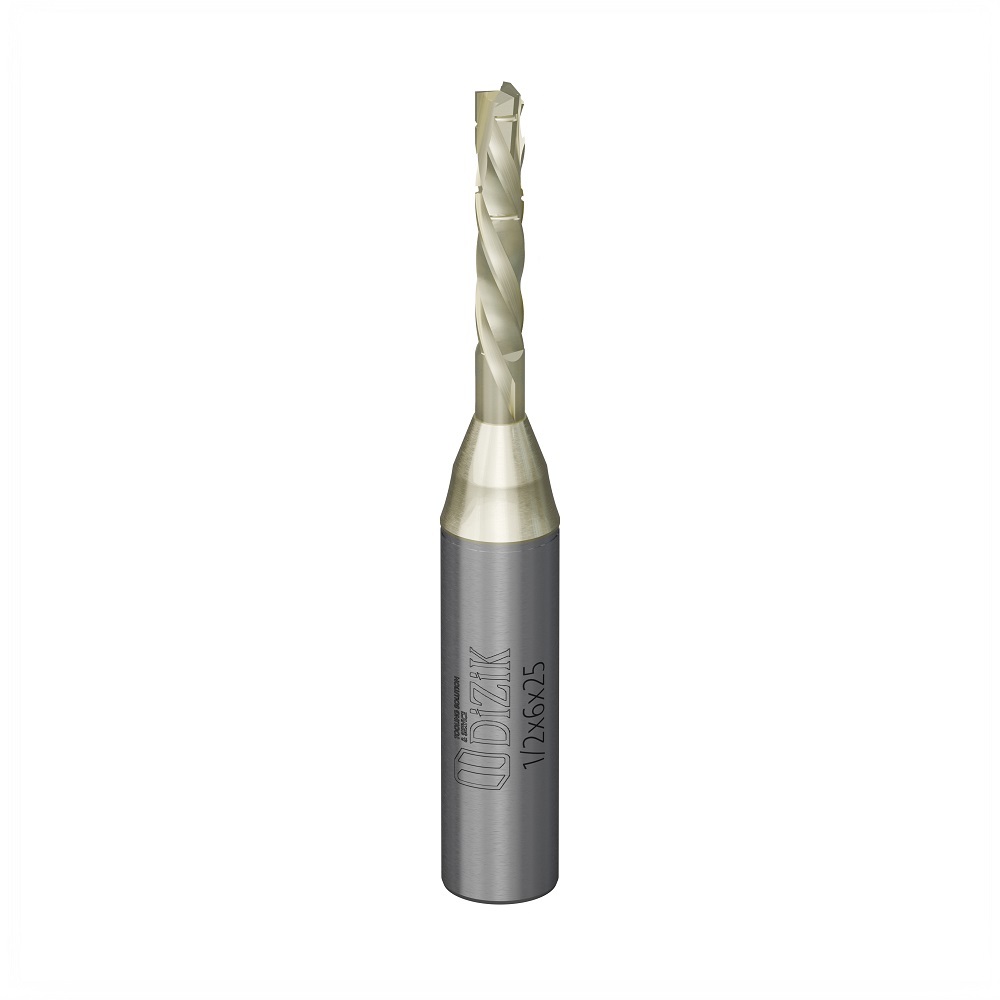

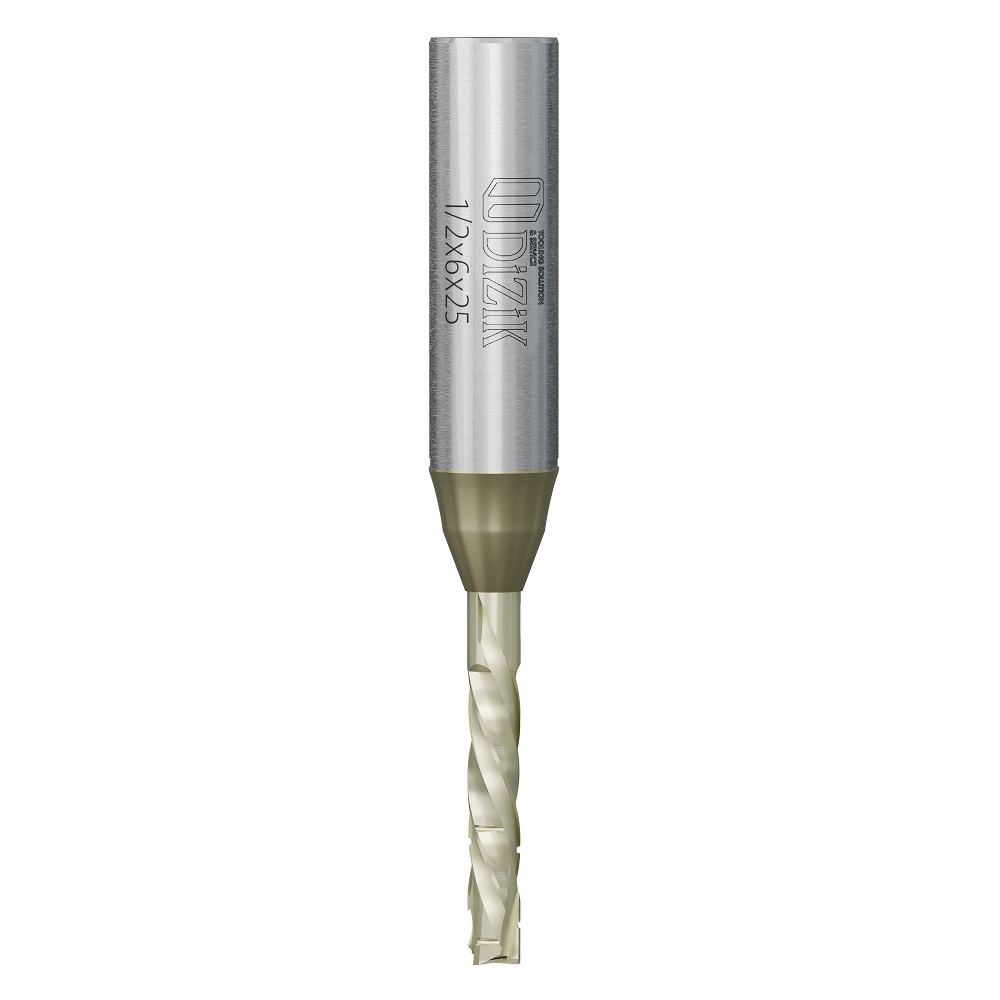

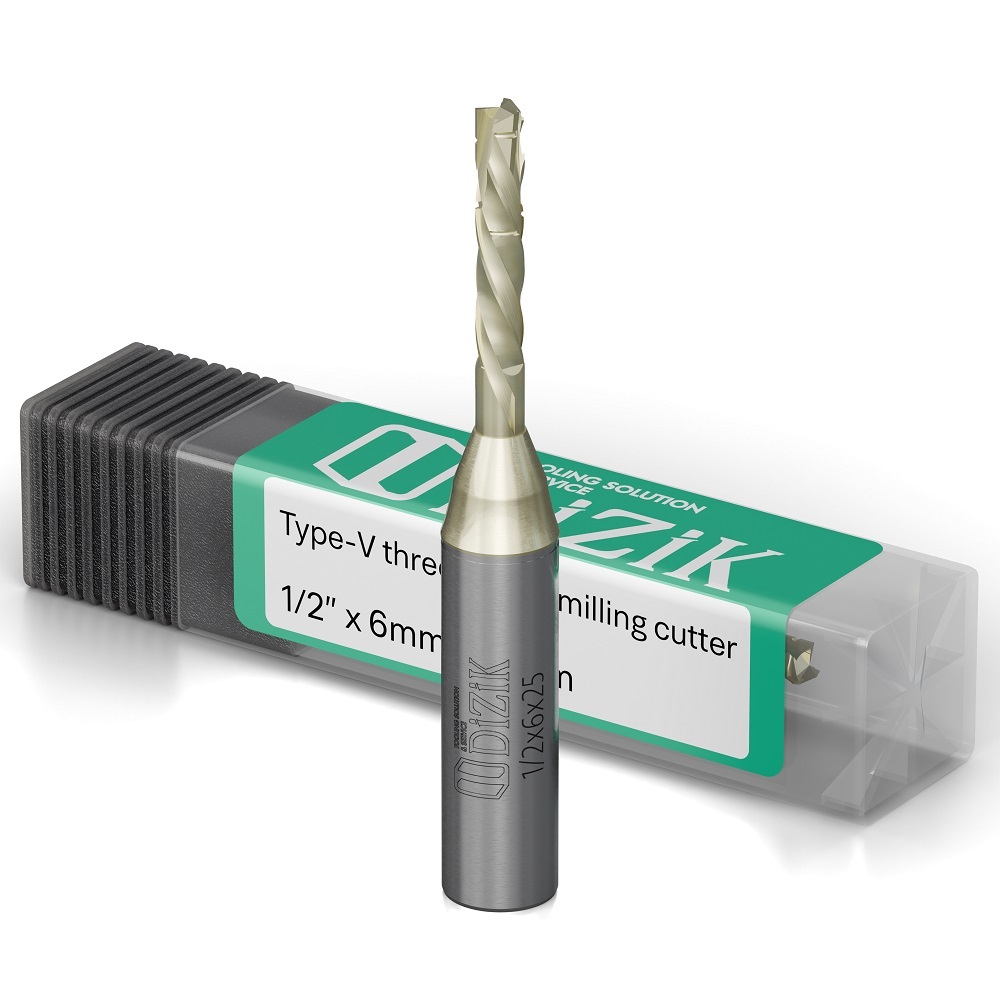

The DiZiK Xpress Compression Bit is designed for precision and efficiency in professional panel processing. Featuring a unique compression geometry, the bit combines both up-cut and down-cut flutes, ensuring tear-free top and bottom surfaces. Its solid carbide cutting section and gold titanium coating enhance tool life and resistance to heat and wear.
With a 3-flute straight profile and chip-breaker design, this bit ensures fast feed rates, clean edges, and reduced chip load, making it ideal for:
Nesting
Sizing
Grooving
Whether you’re handling laminated particleboard, MDF, plywood, or double-sided melamine, the DiZiK Xpress delivers exceptional cut quality and long-lasting performance.
Type: Compression Bit
Material: Solid carbide cutting section
Coating: Gold titanium
Design: 3-flute straight with chip-breaker
Shank: ½ inch
Application: Nesting, sizing, grooving
Machine Compatibility: CNC routers, nesting centers
Compression Geometry: Up & down cut flutes protect laminate surfaces
Chip Breaker: Improves chip evacuation, reduces heat
Titanium Coating: Enhances wear resistance and performance
Solid Carbide Cutting Edge: For strength, precision, and durability
Balanced Feed: Allows higher feed rates without sacrificing finish quality
| ØD (mm) | Cutting Length (mm) | ØS (mm) | Flutes |
|---|---|---|---|
| 6 | 20 | ½ | 3 |
| 6 | 22 | ½ | 3 |
| 6 | 25 | ½ | 3 |
| 6 | 28 | ½ | 3 |
| 8 | 20 | ½ | 3 |
| 8 | 22 | ½ | 3 |
| 8 | 25 | ½ | 3 |
| 8 | 28 | ½ | 3 |
| 10 | 30 | ½ | 3 |
Custom sizes available upon request.
1. What materials are best cut using DiZiK Xpress Compression Bits?
Ideal for MDF, laminated particle board, plywood, double-sided melamine, and similar panel materials.
2. How does the compression design help?
It protects both top and bottom surfaces from tear-out, making it perfect for laminated materials.
3. Can these bits handle high-speed CNC operations?
Yes, they are designed for high-speed applications and optimized for clean finishes even at high feed rates.
4. Are custom sizes available?
Yes, we welcome custom orders to suit specific project requirements.
5. How is this different from DiZiK SuperNesting Bit?
While both share solid carbide and chip-breaker designs, the Xpress Compression Bit is specialized for laminated panels with tear-free edge requirements.
At DiZiK, we engineer cutting solutions that raise your CNC performance to industrial standards. The Xpress Compression Series is built on precision, durability, and clean finish excellence — so you can cut faster, cleaner, and longer.
