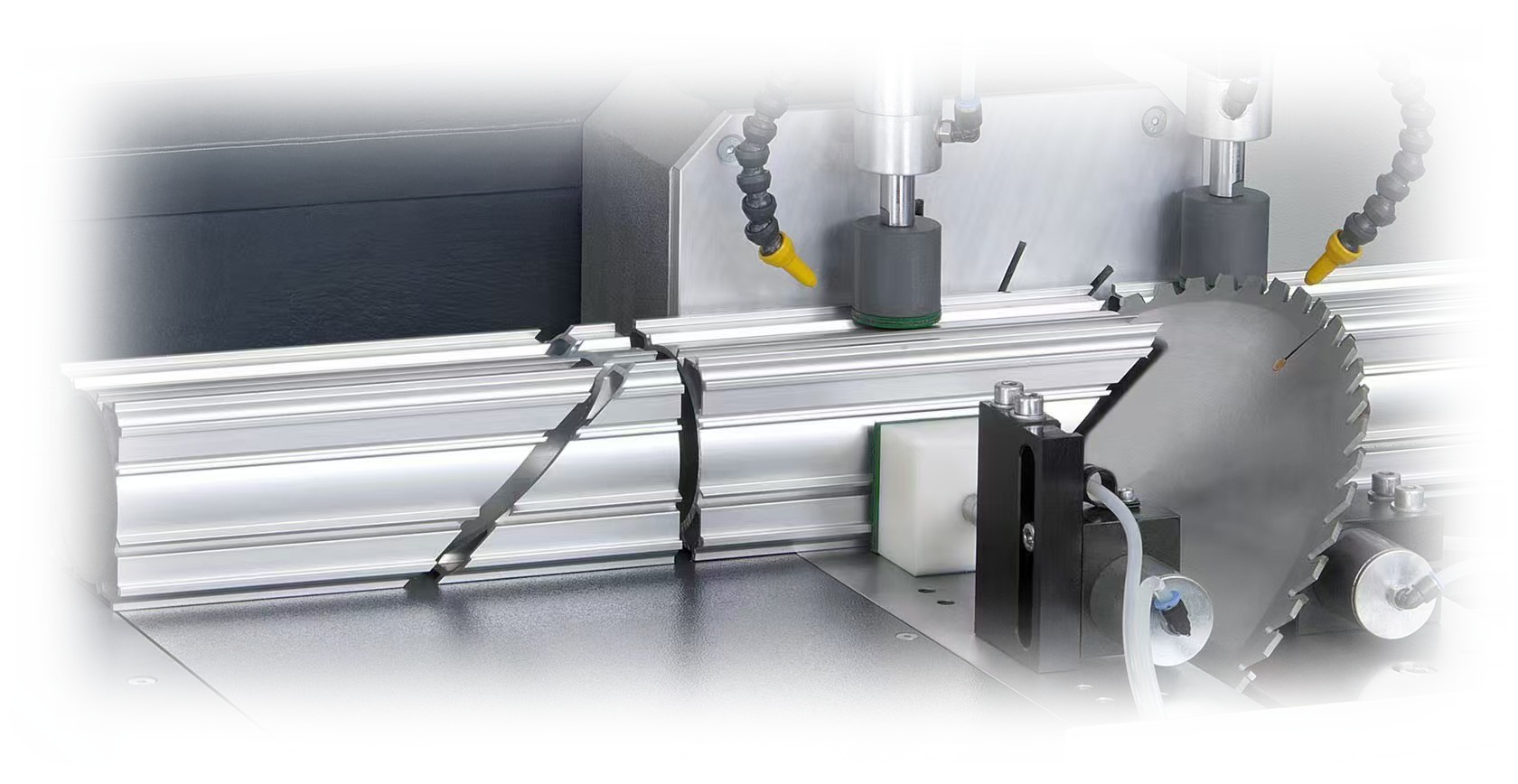

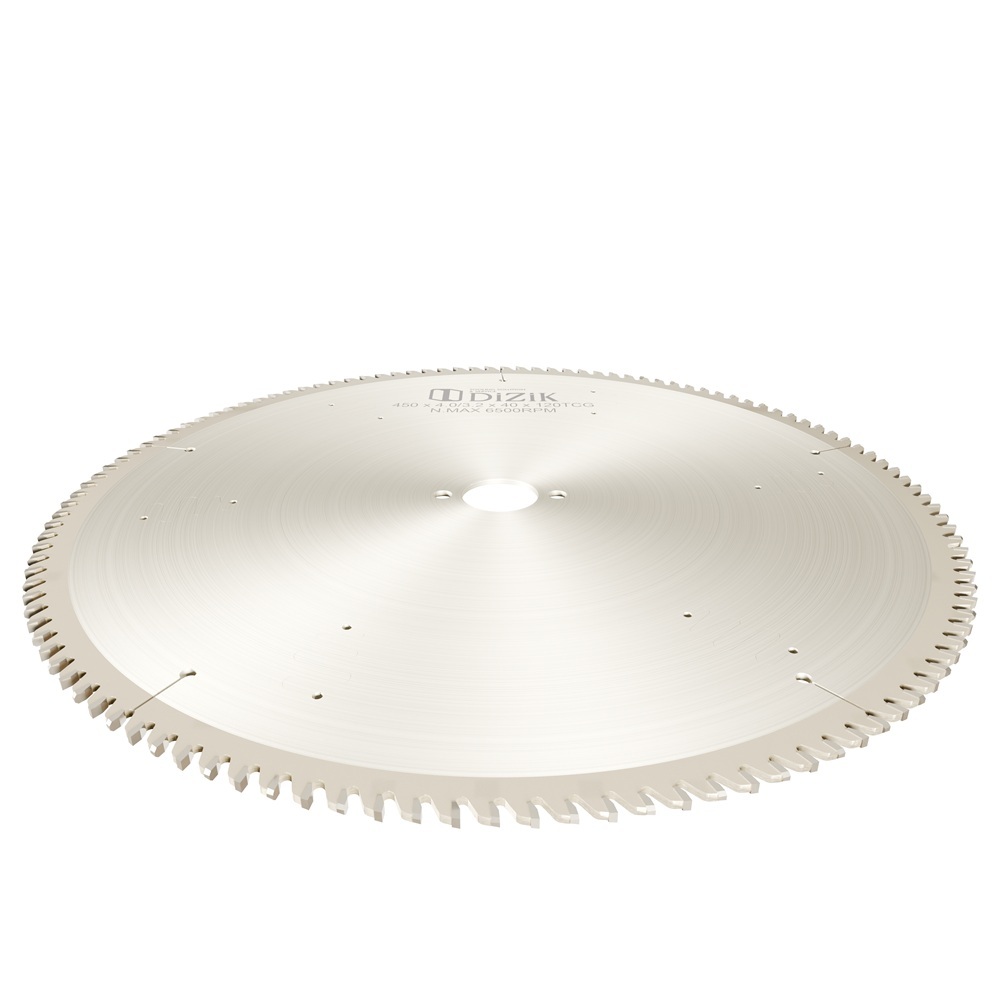

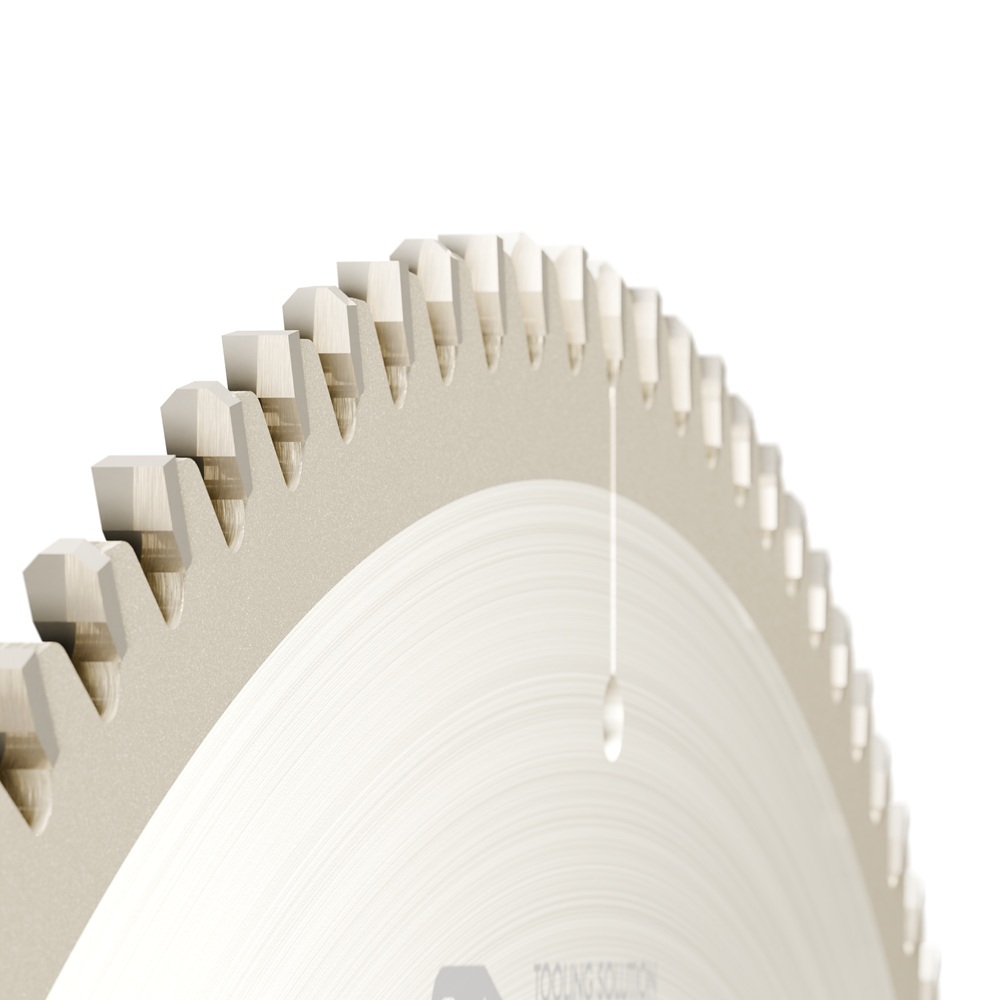

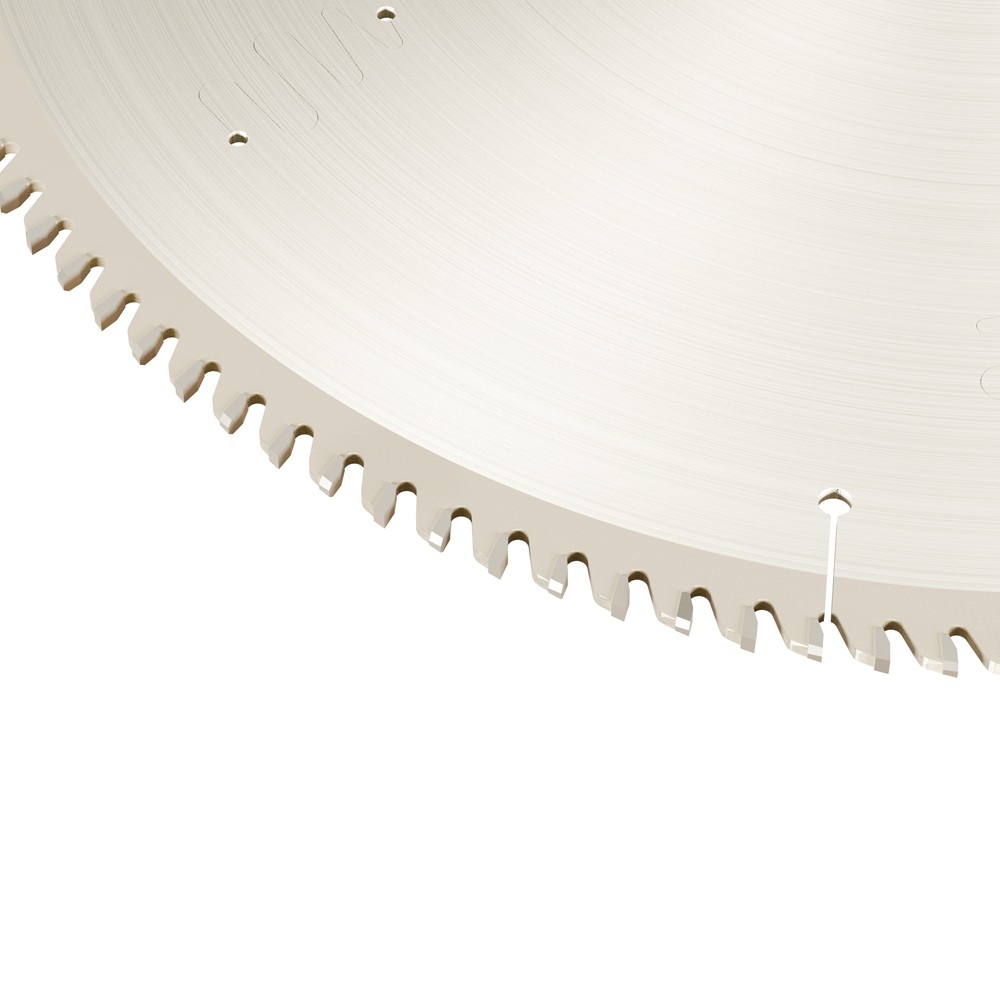

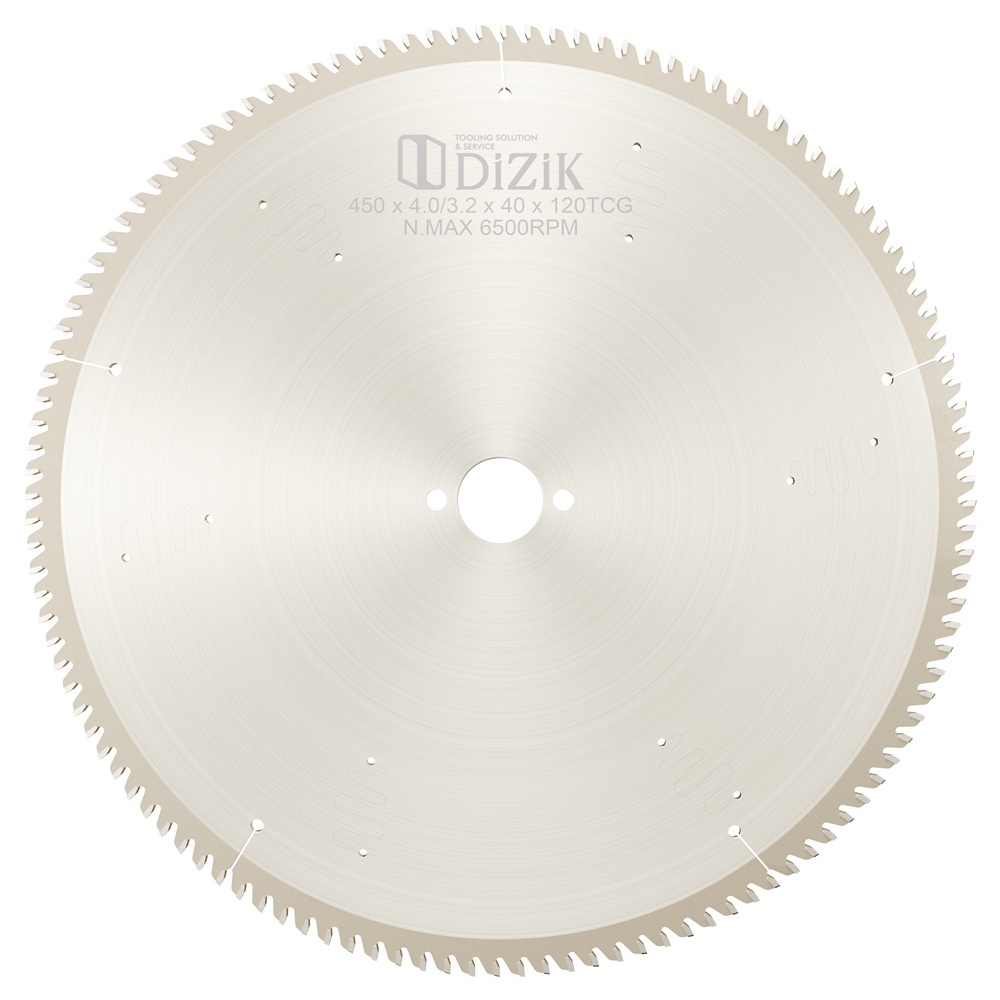

DiZiK’s Alu. Pro Cut series (TCG model) features TCT saw blades engineered for top-tier machines: Elumatec DG 104, FOM AXEL, Emmegi Precision TS2, Yilmaz CK 412, JIH-18C, and more. Designed for aluminum window/door 45° joint cuts, double-head mitre saws, and large-profile fabrication (Ø255-650mm, custom sizes available), these blades deliver precision with TCT tips (tungsten carbide), polished surfaces, and low-vibration performance for burr-free finishes.
Product Specifications Table
Model
OD (mm)
d (mm)
Kerf (mm)
Z (T)
Series
Pin Holes
TCG-255-25.4-2.8-100T
255
25.4
2.8
100
Alu. Pro Cut
Optional
TCG-255-25.4-2.8-120T
255
25.4
2.8
120
Alu. Pro Cut
Optional
TCG-255-30-2.8-100T
255
30
2.8
100
Alu. Pro Cut
Optional
TCG-255-30-2.8-120T
255
30
2.8
120
Alu. Pro Cut
Optional
TCG-305-25.4-3.0-120T
305
25.4
3.0
120
Alu. Pro Cut
Optional
TCG-305-30-3.0-100T
305
30
3.0
100
Alu. Pro Cut
Optional
TCG-305-30-3.0-120T
305
30
3.0
120
Alu. Pro Cut
Optional
TCG-355-25.4-3.2-120T
355
25.4
3.2
120
Alu. Pro Cut
Optional
TCG-355-30-3.2-120T
355
30
3.2
120
Alu. Pro Cut
Optional
TCG-405-25.4-3.5-120T
405
25.4
3.5
120
Alu. Pro Cut
Optional
TCG-405-30-3.5-120T
405
30
3.5
120
Alu. Pro Cut
Optional
TCG-405-30-3.8-120T
405
30
3.8
120
Alu. Pro Cut
Optional
TCG-450-30-4.0-120T
450
30
4.0
120
Alu. Pro Cut
Optional
TCG-500-30-4.4-120T
500
30
4.4
120
Alu. Pro Cut
Optional
TCG-650-30-5.0-120T (Custom)
650
30
5.0
120
Alu. Pro Cut
Customizable
Key specs:
OD Range: 255mm to 650mm (non-standard/customizable for heavy-duty applications).
d (Hole Diameter): 25.4mm / 30mm/32mm/40mm (with optional pin holes for enhanced alignment).
Kerf (Tooth Thickness): 2.8–5.0mm (tailored to material thickness).
Z (Tooth Count): 100T–120T-144T-160T (120T for ultra-smooth cuts, 100T for efficiency).
The Alu. Pro Cut series supports custom non-standard sizes (e.g., 650mm OD for large aluminum profiles), ensuring compatibility with specialized machines. TCT technology ensures durability (30% longer lifespan vs. standard blades), reducing downtime in aluminum fabrication. Ideal for 45° corner trims, window/door profile cutting, and industrial aluminum processing.
FAQs
Q: Can I order non-standard sizes (e.g., 650mm OD)? A: Yes, we offer custom OD up to 650mm, with adjustable Kerf, d, and Z. Contact our team for bespoke solutions.
Q: What is the "pin holes" feature? A: Pin holes ensure precise blade alignment with machines (e.g., Elumatec DG 104), reducing vibration and improving cut accuracy. Available as an option for select models.
Q: Are these blades compatible with Yilmaz CK 412 machines? A: Yes, TCG models are engineered for Yilmaz CK 412, Emmegi TS2, and other listed brands. Check the specs table for exact model matches.
Q: How does TCT (tungsten carbide) enhance performance? A: TCT tips resist wear, handle high-speed aluminum cutting, and maintain edge sharpness, ensuring 5000+ meters of cutting per blade (30% more than standard blades).
Q: Can I choose different Kerf (tooth thickness) for my application? A: Yes, Kerf ranges from 2.8mm (light-duty) to 5.0mm (heavy-duty, custom), matching your aluminum thickness and machine requirements.
