Applications: Blind hole drill for dowels, screws, etc. in softwood and hardwood furniture,coated, veneered and uncoated wood base materials such as chipboard,plywood and MDF, plastic materials, high pressure laminated, etc. For excellent hole finishing quality with tear free edge.
Machines: For CNC machines, drilling machine equipment’s, etc.

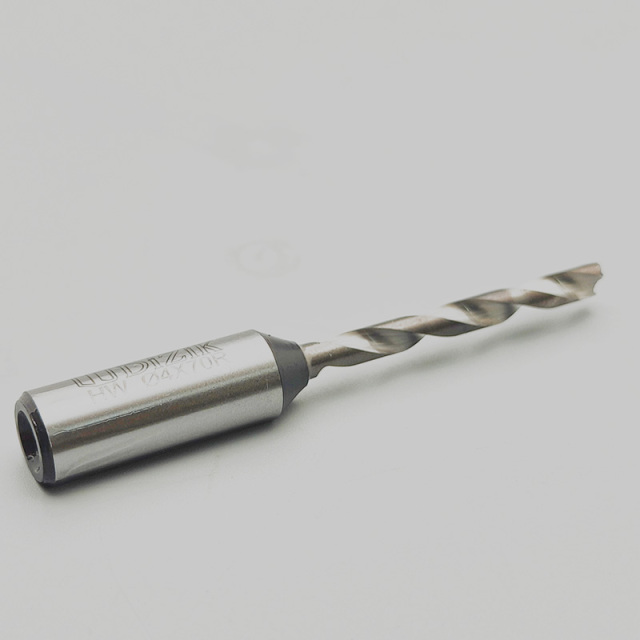

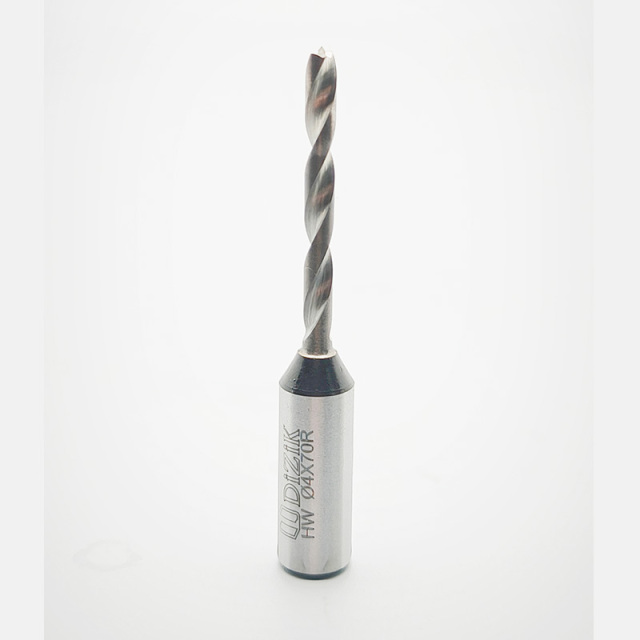

Technical info.: Blind hole drill with solid tungsten carbide body (HW). Negative shear anglespur with radial grinded profile ensuring tear free hole edge and increased drill life time. Supplied with M5x10 DIN 916 screw, special adjustment screw forsetting screw for quick change adapter supplied by per request. Black colour for right rotation drills and red colour for left rotation drills

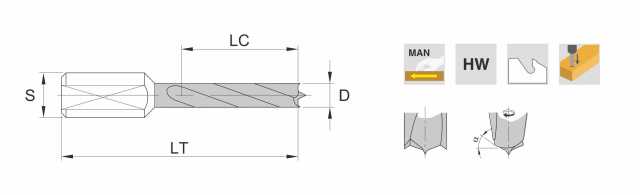

| Part-No. |
ΦD |
LC |
LT |
S |
Z |
Rotation |
Notes |
| B.SCVZ.357L/R |
3 |
25 |
57 |
10x25 |
2 |
RH/LH |
|
| B.SCVZ.457L/R |
4 |
25 |
57 |
10x25 |
2 |
RH/LH |
|
| B.SCVZ.557L/R |
5 |
25 |
57 |
10x25 |
2 |
RH/LH |
|
| B.SCVZ.657L/R |
6 |
25 |
57 |
10x25 |
2 |
RH/LH |
|
| B.SCVZ.857L/R |
8 |
25 |
57 |
10x25 |
2 |
RH/LH |
|
| B.SCVZ.1057L/R |
10 |
25 |
57 |
10x25 |
2 |
RH/LH |
|
| B.SCVZ.370L/R |
3 |
35 |
70 |
10x30 |
2 |
RH/LH |
|
| B.SCVZ.470L/R |
4 |
35 |
70 |
10x30 |
2 |
RH/LH |
|
| B.SCVZ.570L/R |
5 |
35 |
70 |
10x30 |
2 |
RH/LH |
|
| B.SCVZ.670L/R |
6 |
35 |
70 |
10x30 |
2 |
RH/LH |
|
| B.SCVZ.870L/R |
8 |
35 |
70 |
10x30 |
2 |
RH/LH |
|
| B.SCVZ.1070L/R |
10 |
35 |
70 |
10x30 |
2 |
RH/LH |
|
1. What is a solid carbide dowel bit brad point used for? A solid carbide dowel bit brad point is designed for precise, clean drilling in wood materials, specifically for creating dowel holes. It is ideal for applications such as woodworking, joinery, and cabinet making, where accuracy and a clean finish are essential. 2. What materials can this bit drill through?This bit is perfect for drilling through hardwood, softwood, and composite materials. The solid carbide construction provides exceptional durability and cutting performance, making it highly suitable for tough materials that require sharpness and precision. 3. Why is the brad point design important? The brad point design ensures highly accurate drilling by centering the bit in place and preventing it from wandering. It also produces clean, tear-free entry and exit holes, which are critical for applications like dowel joinery that require precision and a flawless finish. 4. What are the advantages of solid carbide over other materials? Solid carbide offers superior wear resistance, heat tolerance, and longevity compared to high-speed steel (HSS) or other materials. It remains sharp for much longer, even in demanding applications, which reduces the need for frequent replacements and increases efficiency in professional environments.5. Can this dowel bit be used with CNC machines and handheld drills?Yes, the solid carbide dowel bit brad point is versatile and compatible with a variety of equipment, including CNC machines, drill presses, and handheld drills. It delivers excellent performance across all these platforms, making it suitable for both manual and automated drilling operations.***We package each bit securely in protective packaging to maintain its precision edge during transport and storage. OEM and ODM services are available, allowing customization to your specific technical requirements.
High Precision Brad Point for Clean CutsThe Brad Point tip of the DiZiK Solid Carbide Dowel Bit ensures clean and accurate cuts. Perfect for dowel joinery, this design reduces the risk of tear-out and makes drilling smoother, resulting in professional-grade holes every time.Durable and Long-Lasting Solid Carbide ConstructionCrafted from solid carbide, this drill bit offers unmatched durability and resistance to wear. The solid carbide material ensures the tool remains sharp for extended periods, making it ideal for heavy-duty applications and hard woods.Versatile for Multiple Woodworking ProjectsWhether you are crafting furniture, cabinetry, or general woodworking projects, the DiZiK Dowel Bit excels in all situations. It’s the go-to tool for creating perfect dowel holes with precision, ensuring your joinery is secure and strong.Easy and Efficient Dowel Hole DrillingEnjoy a smoother, more efficient drilling process. The Brad Point allows for easy hole alignment, making dowel hole drilling faster and more accurate than ever. It’s an excellent tool for both beginner and advanced woodworkers.Product Advantages
- Precision: The Brad Point ensures clean and precise cuts with minimal tear-out.
- Durability: Made from solid carbide, it guarantees a long-lasting, sharp cutting edge.
- Versatility: Perfect for various woodworking applications, especially dowel joinery.
- Reduced Tear-Out: The unique Brad Point tip minimizes the chances of damaging wood.
- Cost-Effective: High-quality materials ensure long tool life, reducing the need for frequent replacements.
