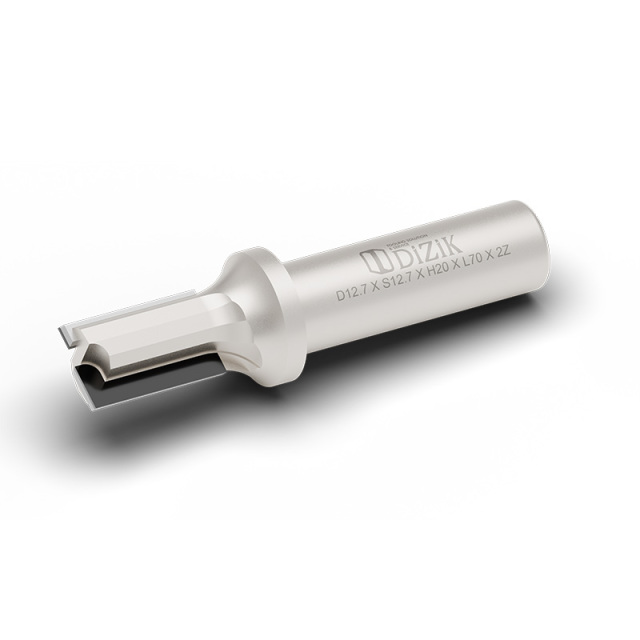

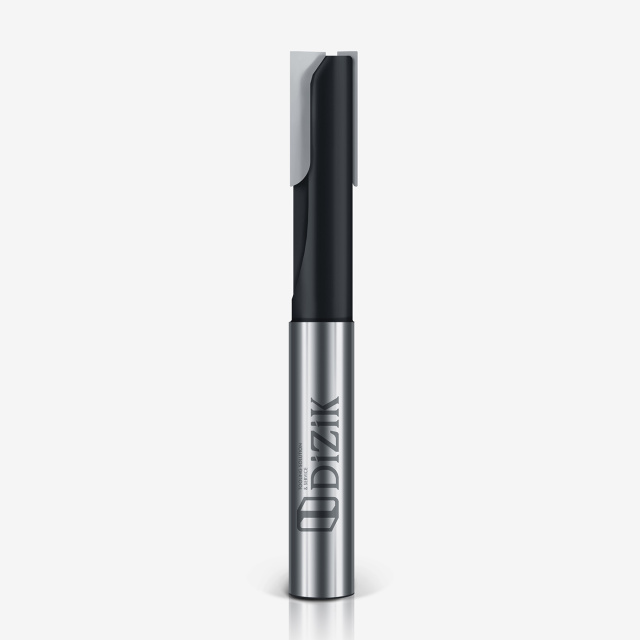

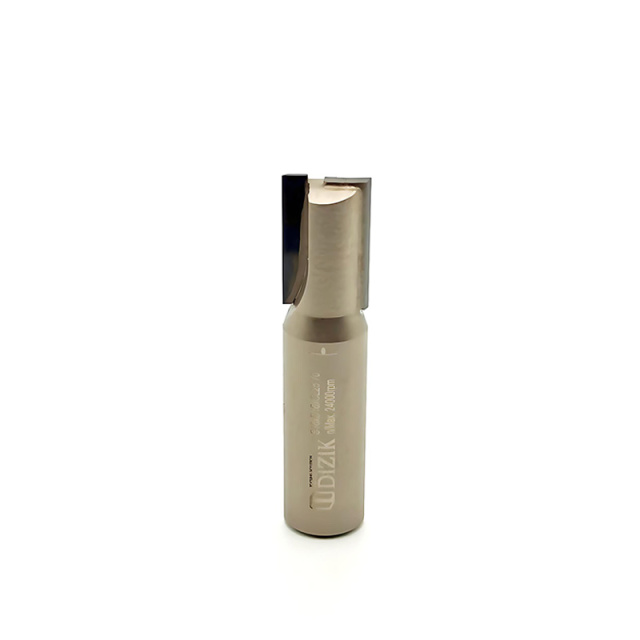

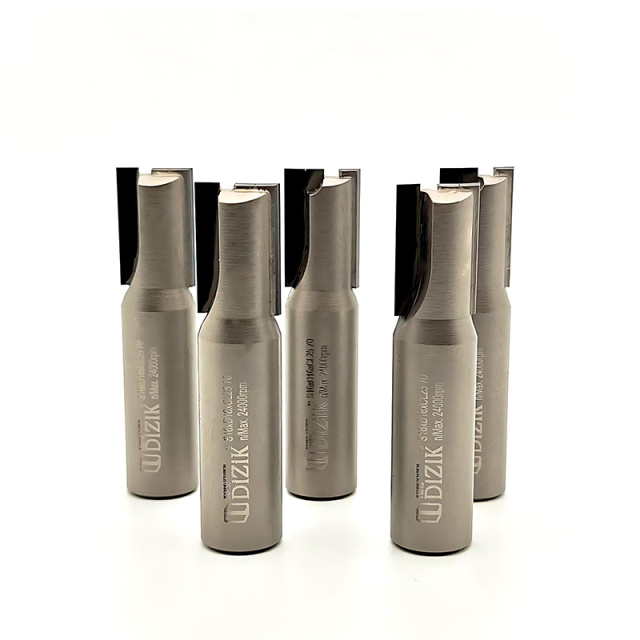

DP Z2 Straight Router Bit | Solid Carbide for CNC Woodworking

Elevate precision CNC machining with our DP Z2 Straight Router Bits, engineered for high-speed, high-efficiency processing of veneered, laminated, and uncoated wood base materials. Crafted with a solid tungsten carbide (HW) body and reinforced brazed polycrystalline diamond (DP) teeth, these bits deliver exceptional rigidity, minimal vibration, and long-lasting cutting accuracy.

Compatible with both CNC machines and stationary routers, they excel in boring, grooving, and trimming tasks across a wide range of materials—including MDF, chipboard, plywood, and veneered/laminated panels. Manufactured by DiZiK Tool with 20 years of professional woodworking cutter R&D, supported by China & Malaysia production bases, we adopt advanced high-temperature brazing technology to ensure firm diamond tooth bonding, preventing tooth fall-off during continuous high-volume cutting for abrasive wood materials.

Core Technical Advantages

• Z2 Two-Flute Design: Optimized chip removal channel, no burning marks on veneered/laminated surfaces, and clean, splinter-free edges for precision machining.
• Polycrystalline DP Diamond Teeth: 3–5 times longer service life than standard carbide bits, reducing tool replacement downtime and production costs.
• Solid Integral Carbide Body: Ensures stable cutting performance and low vibration, even during long-hour continuous mass production for industrial-grade applications.
• Custom Diamond Grain Options: 5μm for ultra-smooth fine trimming, 10μm for heavy-duty continuous cutting in high-volume factory operations.

Key Features

• High-precision CNC router bits for flawless boring, grooving, and trimming of wood-based materials.
• Reinforced DP diamond teeth for superior wear resistance, ideal for frequent cutting tasks in industrial workshops.
• Versatile compatibility: Works seamlessly with CNC machines, stationary routers, and handheld routers (for light to medium use).
• Rigid tungsten carbide construction maintains structural integrity, avoiding deformation during high-speed cutting.

Application Scope

Suitable for Industrial Wood Processing:

• Veneered & laminated wood panels (furniture board, interior decoration panels)
• MDF, chipboard, plywood, composite wood, and solid wood components
• Key Scenarios: Cabinet furniture manufacturing, door & window frame processing, high-volume panel trimming, and grooving for interior decoration.

Additional Benefits

Our DP Z2 straight bits minimize chipping on thin veneered surfaces and enable higher feed rates without compromising cutting accuracy—critical for high-efficiency manufacturing environments. Multiple standard dimensions are available for cutting diameter, edge length, and shank size, with full OEM personalized customization supported for bulk orders, perfectly matching dedicated furniture production line requirements.

FAQ

Diamond-tipped bits offer far higher durability, longer sharpness retention, and superior cutting precision. They reduce frequent tool replacements, lower production downtime, and deliver smoother finishes for woodworking tasks.

It works exceptionally well on veneered/laminated wood, MDF, chipboard, plywood, composite materials, and common hardwoods—providing clean, splinter-free cuts without surface damage.

Store in a dry, dust-free environment; clean residual resin or wood debris after each use. Avoid excessive feed speed during cutting, and opt for professional regrinding when cutting efficiency declines.

For hard abrasive materials like veneered/laminated panels, use higher spindle speed with a lower feed rate; for softer wood materials, increase the feed rate appropriately. Always perform test cuts before mass production to fine-tune settings.

It is compatible with both handheld routers and CNC machines. For maximum precision and stability in high-volume production, it is most recommended for CNC equipment with stable speed and depth control.

We offer two premium options: 5μm diamond grain for ultra-smooth surface trimming (suitable for fine furniture processing) and 10μm diamond grain for heavy-duty continuous cutting (ideal for mass production factories).

Yes, full OEM customization is available. We support exclusive shank diameters, cutting lengths, and special specifications to meet the unique needs of dedicated production lines and bulk orders.

The Z2 two-flute structure provides better cutting balance, faster chip removal, and no surface burning, making it particularly suitable for anti-chipping processing on veneered/laminated wood panels.

Factory Authority Note

DiZiK | 20 Years Professional Woodworking Cutter Manufacturer | China & Malaysia Production Bases | Global Supply to 60+ Countries
